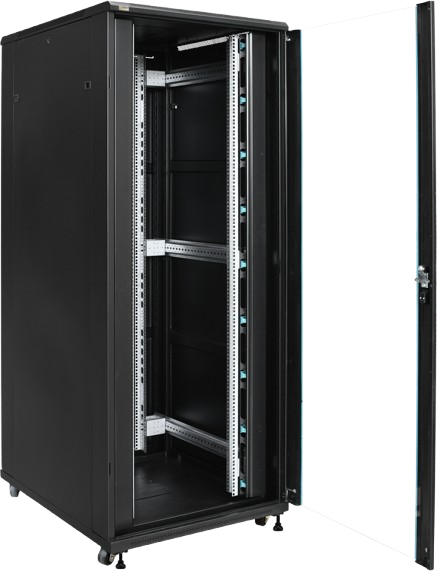

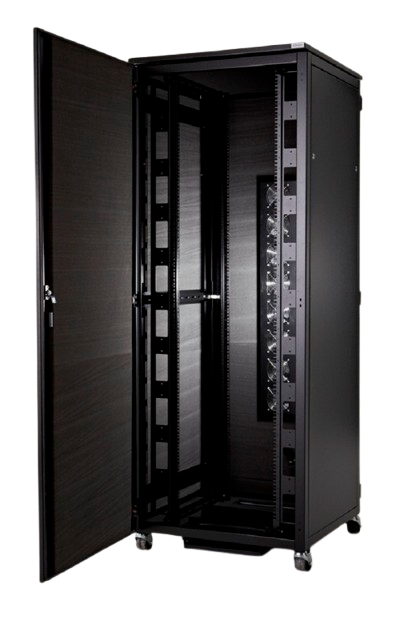

42U Floor-Standing Network Rack

Heavy-duty 42U (73.5-inch) floor-standing rack for 19" servers and networking gear, with up to 3,000 lbs capacity, adjustable rails, and advanced airflow/cable management for data center scalability.

Select Size
Select Color
Product price
ETB 126,124.97
Product quantity
1000 available in stock

The 42U network rack is a heavy-duty, ventilated steel cabinet designed to house, organize, and secure standard-depth 19-inch rack equipment in mission-critical IT applications like data centers, edge computing, and enterprise networks. Constructed from 12-16 gauge cold-rolled steel with a black powder-coated finish for durability and corrosion resistance, it features adjustable square-hole mounting rails (M6 or 10-32 tapped), reversible front/rear doors (perforated or glass for 70-80% airflow), and removable side panels with key locks for easy access.

With a static load capacity up to 3,000 lbs (1,360 kg), it includes integrated cable management channels, vertical PDU mounting (up to 8x 0U PDUs), and baying kits for scalable row configurations.

  • Dimensions and Capacity: External: 78-84" H x 23.6-31.5" W x 31.5-47" D (varies by model, e.g., 800x1000mm or 1200mm deep); internal usable: 42U height x 19" width x 30-42" depth; static load up to 3,000 lbs (1,360 kg) for fully populated setups.
  • Mounting Options: Four adjustable 19" EIA rails (front/rear) with square holes and numbered positions; tool-less button mounts for PDUs/cable organizers; baying kits for side-by-side or U/T configurations without intermediate frames.
  • Build and Security: 12-16 gauge steel frame; reversible perforated mesh doors (70-80% open for ventilation) or tempered glass; four-point cylinder locks on doors/sides; grounding points; optional seismic anchoring for stability.
  • Cooling and Management: Enhanced airflow with split rear doors, vented top/bottom/sides; supports up to 6-8 vertical PDUs; integrated cable channels, bristle grommets, and ladder racking to prevent air mixing; provisions for fans or AC units.
  • Certifications and Compatibility: EIA-310-D, IEC 60297, RoHS, UL-listed; PCI-compliant for secure environments; fits Dell, HP, Lenovo, IBM servers/networking; backward compatible with ETSI/metric standards; options for harsh environments (e.g., IP-rated).
  • Storage/Handling: Store in a dry, climate-controlled area (0-40°C, <70% RH) to avoid rust or deformation; use lifting equipment for transport (eye-bolts on top); minimum cable bend radius 4x diameter; protect from impacts during shipping.
  • Installation: Floor-mount with leveling feet or casters on level surfaces; anchor to concrete for seismic compliance; distribute weight evenly (max 750 lbs per column); tool-less rails adjustable in 1-2" increments; test airflow post-install with thermal imaging.
  • Operating Environment: -20°C to 60°C; indoor/non-plenum (LSZH options for plenum); humidity <90% non-condensing; ensure 4-6" rear clearance for cabling/cooling; ground all components to prevent ESD; not for direct outdoor exposure unless IP55-rated.
  • Contact us for replacement or return.
